Solar Radio Burst Associated with a Falling Bright EUV Blob
by M. Karlický et al.*

In several papers the thermal conduction front formed between hot and cold plasmas was studied (Brown et al. 1979, McKean et al 1990, Arber & Melnikov 2009). Karlický (2015) has studied the thermal front using a 3-D particle-in-cell electromagnetic code and found that the thermal front can produce radio emission. Here we present a very rare radio burst which we interpreted as generated by the thermal conduction front formed in front of the falling EUV blob.

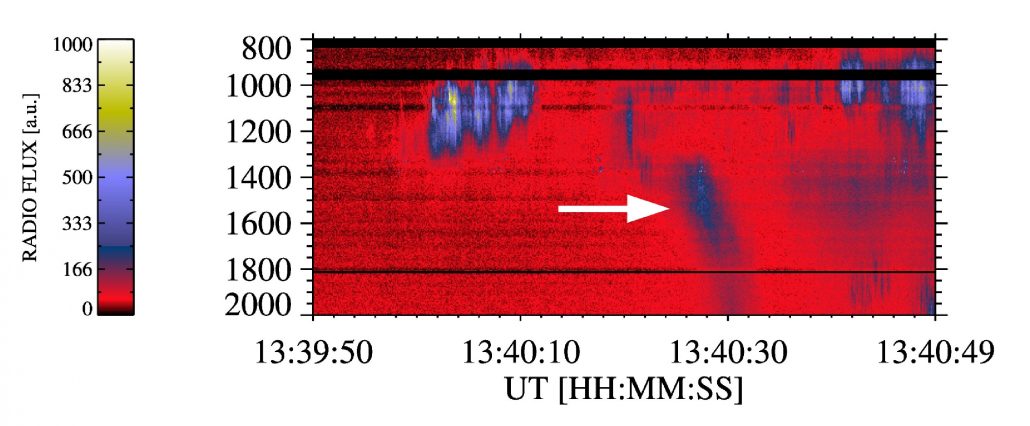

Figure 1. Radio spectrum observed during the 2015 November 4 flare by the Ondřejov radiospectrograph. The arrow shows the SPDB.


Figure 1 shows the 800 – 2000 MHz radio spectrum of the M3.7 flare observed on 2015-Nov-04 by the Ondřejov radiospectrograph. In this radio spectrum a very rare slowly positively drifting burst (SPDB) can be seen. It started at 1300 MHz at 13:40:24 UT and drifted towards higher frequencies with frequency drift of about 115 MHz s-1. The SPDB was observed during the impulsive phase of the flare, close to the maximum peak of GOES soft X-rays derivatives. We used data from several instruments (SDO/AIA, Hinode/XRT, IRIS, MSDP/Bialkow). We analysed these to find any observable EUV signatures associated with the SPDB. Figure 2 contains images from AIA 131 Å and 304 Å filters, combined with one panel observed in XRT Be_med filter. We observed a bright plasma blob (white arrows) falling along the dark loop structure (yellow arrow) within the bright flare arcade. Simultaneous observations in AIA 131 Å and XRT Be_med filters point to a hot component within the blob, likely with log(T [K]) ≥ 6.9. The colder emission in AIA 304 Å filter is dominated by optically thick He II Lyα line at 303.8 Å formed at around log(T [K]) ≈ 4.9 (Del Zanna et al. 2015). The blob was observed in all AIA coronal wavelengths and also in IRIS Si IV 1400 Å images indicating a strongly multi-thermal character. The fall velocity of the EUV blob was about 280 km s-1. An interaction of this falling blob with the chromosphere caused a sudden change of the Hα line spectrum, which shows a strong plasma heating and enhanced plasma velocities.

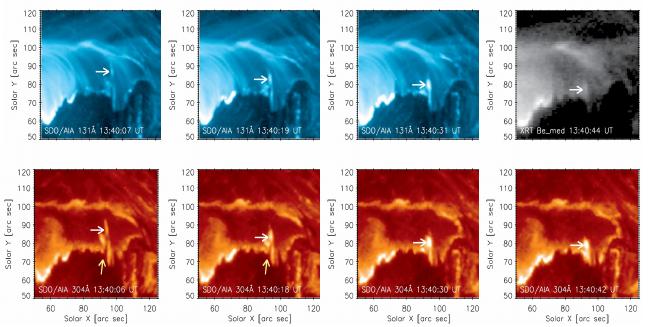

Figure 2. Motion of EUV plasma blob along the dark loop structure as seen in SDO/AIA 131 Å and Hinode/XRT Be_med filters (top row) and SDO/AIA 304 Å filter. White arrows show plasma blob motion along the cold dark loop structure within the EUV arcade (yellow arrow).


The slowly positively drifting burst (SPDB) was observed at the beginning of solar flare and its drift (115 MHz s-1) was much smaller than that of type III bursts in the same frequency range. Thus, SPDB has to be generated by a very slowly moving agent. We found that the fall velocity of the EUV blob (280 km s-1) corresponds to the sound velocity at studied EUV structures. Combining observational facts and different possible interpretations we propose that SPDB was generated by the thermal conduction front formed in front of the falling bright blob.

Based on the recent paper:  Karlický, M., Zemanová, A., Dudík, J. and Radziszewski, K. 2018, ApJL 854, L29


Arber, T. D., and Melnikov, V. F. 2009, ApJ, 690, 238

Brown, J.C., Melrose, D.B., & Spicer, D.S. 1979, ApJ, 228, 592

Del Zanna, G., Dere, K.P., Young, P.R. et al., 2015, A & A, 582, 56

Karlický, M. 2015, ApJ, 814, 153

McKean, M.E., Winglee, R.M.,and Dulk, G.A. 1990, ApJ, 364, 295

*Full list of authors: M. Karlický, A. Zemanová, J. Dudík., K. Radziszewski
