The base of a couple of classes where the activity consists of following a schedle of rotations. More...

#include <activities.h>

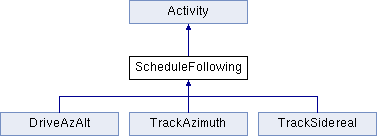

Inheritance diagram for ScheduleFollowing:

Public Member Functions
virtual ms_t	start (ms_t)
	The activity will be started by the main loop calling the `start` function. More...

virtual void	cancel (void)
	Cancel the activity. More...

virtual ms_t	poke (ms_t t)
	From time to time, the main loop will 'poke' this activity, by calling this function. More...

virtual void	at_endstop (ms_t t, int az_click_count, int alt_click_count)
	The method called when the system detects a timeout, at the limit of an axis's travel. More...

Public Member Functions inherited from Activity
virtual void	az_click (ms_t t, double azimuth)
	The method called when the system detects an azimuthal click. More...

virtual void	alt_click (ms_t t, double altitude)
	The method called when the system detects an altitude click. More...

bool	is_complete (void) const
	Return true if the activity is complete. More...

bool	is_valid (void) const
	Return true if the activity is valid. More...

ActivityTypes	type (void)
	Return the type of Activity.

Protected Member Functions
	ScheduleFollowing (TelescopeController , State , ActivityTypes)
	Create an instance of the activity.

Protected Member Functions inherited from Activity
void	mark_as_complete (void)
	Set to true by a derived class when its work is done. More...

void	mark_as_invalid (void)
	Mark the activity as invalid. More...

	Activity (TelescopeController , State , ActivityTypes)
	Construct an activity base-class.

Additional Inherited Members
Public Types inherited from Activity
enum	ActivityTypes { BaseActivity, CalibrationActivity, ScheduleFollowingActivity, DriveAzAltActivity, TrackSiderealActivity, TrackAzimuthActivity }
	The activity types here correspond to the this class and its subclasses. More...

Static Public Member Functions inherited from Activity
static void *	operator new (size_t size)
	Allocate space for an Activity. More...

static void	operator delete (void *p)
	Deallocate an Activity.

static int	max_activities (void)
	Return the maximum number of activities it's possible to have allocated at one time. More...

static int	n_activities (void)
	Return the number of currently allocated activities. More...

static void	delete_all_allocations (void)
	Delete all activity allocations. More...

Protected Attributes inherited from Activity
State *const	state
	The state which we are to manipulate.

TelescopeController *const	controller
	The controller object provides methods for physically moving the telescope.

byte	activity_status
	The internal status of the object: complete / invalid. More...

Detailed Description

The base of a couple of classes where the activity consists of following a schedle of rotations.

Member Function Documentation

void ScheduleFollowing::at_endstop	(	ms_t	t,
		int	az_click_count,
		int	alt_click_count
	)

virtual

The method called when the system detects a timeout, at the limit of an axis's travel.

Parameters

t	the current time
az_click_count	the azimuthal click-count at this position
alt_click_count	the altitudinal click-count at this position

Implements Activity.

void ScheduleFollowing::cancel ( void )

virtual

Cancel the activity.

Idempotent.

Reimplemented from Activity.

ms_t ScheduleFollowing::poke ( ms_t t )

virtual

From time to time, the main loop will 'poke' this activity, by calling this function.

This allows the activity to undertake some periodic activity.

Parameters

t	the current time

Reimplemented from Activity.

ms_t ScheduleFollowing::start ( ms_t now )

virtual

The activity will be started by the main loop calling the start function.

Returns: the time at which the activity should next be poked (return TIME_NEVER to avoid being poked again).

Reimplemented from Activity.

The documentation for this class was generated from the following files:
