IDL is much more powerful and flexible than gnuplot, and has a correspondingly longer learning curve. It's never been accused of being elegant, but with only a bit of headbanging, I've always managed to get it to do what I wanted (I've always seen it as reminiscent of Fortran in this respect).
Several missions have used IDL as the language in which they have written their data-analysis software, and Starlink is currently experimenting with providing IDL interfaces to important Starlink applications, which is possible because IDL can link to codes written in languages such as Fortran or C. IDL is moving towards being a core facility at Starlink sites.
IDL displays data in arrays as part of a generic set of array
manipulations. For example, the data in the file
gausssine.dat
was produced by the following
sequence of IDL commands:
The functionx=(findgen(64)-32)^2 d=fltarr(64,64) for i=0,63 do d(i,*)=sqrt(x+(i-32)^2) a3=exp(-(d/15)^2) s=sin(findgen(64)/63*5*3.141592657) s2=s#s m=s2*a3
findgen(N)
returns a float array
(indexed from 0 to ) in
which the value of each element is the same as its index;
performing an arithmetic operation such as subtraction or
exponentiation on an array performs it on each element of
the array; fltarr
declares an array of floats
of the specified dimensions; the array reference
d(i,*)
refers to the entire i
'th
row of d
; the operator #
forms
the direct product of the two vectors. The result of this
is to set d
to be an array where each element
is the euclidean distance from element
(32,32)
[Note 11].Once we have the data in the array m
, we can
produce a surface plot with surface,m
, and
then go on to annotate it, rotate it, shade it, contour
it, with the large collection of options and parameters to
the surface
command. We can produce
PostScript output with the following sequence of commands:
This produces the EPS file shown in Figure 2. A minor, but persistent, irritation with IDL is that, although its input and output facilities are as flexible as, say, Fortran's (which they closely resemble), it doesn't come with a function for dealing with the common case of data printed out in columns (the only case gnuplot naturally deals with). Fortunately, such a function is not only easy to write, but a useful example, too. See Appendix A.8.!p.font=0 ; use postscript fonts rather than IDL outlines set_plot, 'ps' ; use the postscript output driver device, /encap, filename='gausssine-idl.eps' ; produce encapsulated postscript surface, m device, /close ; close the file

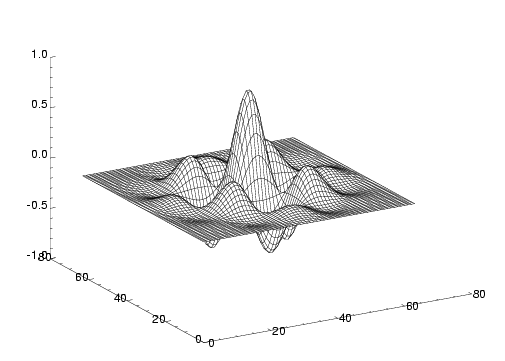

Figure 2: File gausssine.dat, displayed with IDL |
IDL comes with rather good manuals, the reference parts
of which are available on-line by typing ?
at
the IDL prompt.
See appendix B of SUN/55 for a description of how to import data in the Starlink NDF format into IDL.
