Kernel Heating and Ablation in the Impulsive Phase of Two Solar Flares
De Jager, C., Kernel Heating and Ablation in the Impulsive Phase of Two Solar Flares, Sol. Phys., 98, 267-280 (1985) (ADS)
(click on the image for a larger version)

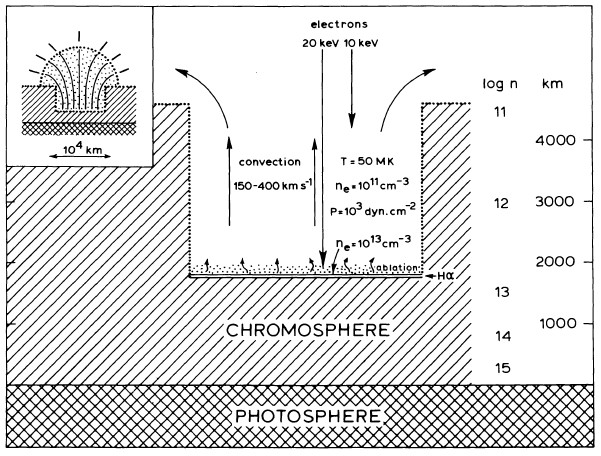

A close-up view of how the chromosphere might "evaporate" or ablate
under electron bombardment.
Hydrostatic equilibrium has returned
to this loop footpoint, which has a transition-region pressure some
three to four decades above the quiet Sun's.
As resolution has
improved, the horizontal scale on the cartoon is looking less and
less likely.
In fact we really only have upper limits for the
horizontal scale of the active field, and it may be far from
hydrostatic equilibrium.
This gives a fair idea of the geometry
as envisioned then (a third of a century ago!) - compares with the
hopeless complexity implied by the more modern
Berger (black and white) or
De Pontieu (color)
cartoons that describe the same "layer" - the chromosphere, highly structured
in three dimensions and not at all simplifiable as a layer..
Note the placement of the top of the chromosphere at about 5000 km; this is
much higher than the 1D semi-empirical models would put it, but does reflect
the extension produced by 3D flows such as spicules.
The Gurman cartoon considers this
in a somewhat broader context, albeit one restricted to high-energy particles.
When will MHD and particle acceleration meet on common grounds?
