Chitta, L. P., H. Peter, E. R. Priest, and S. K. Solanki, Impulsive coronal heating during the interaction of surface magnetic fields in the lower solar atmosphere, A&A, 644, A130 (2020) (ADS)
(click on the image for a larger version)
Date: 2021 December 29

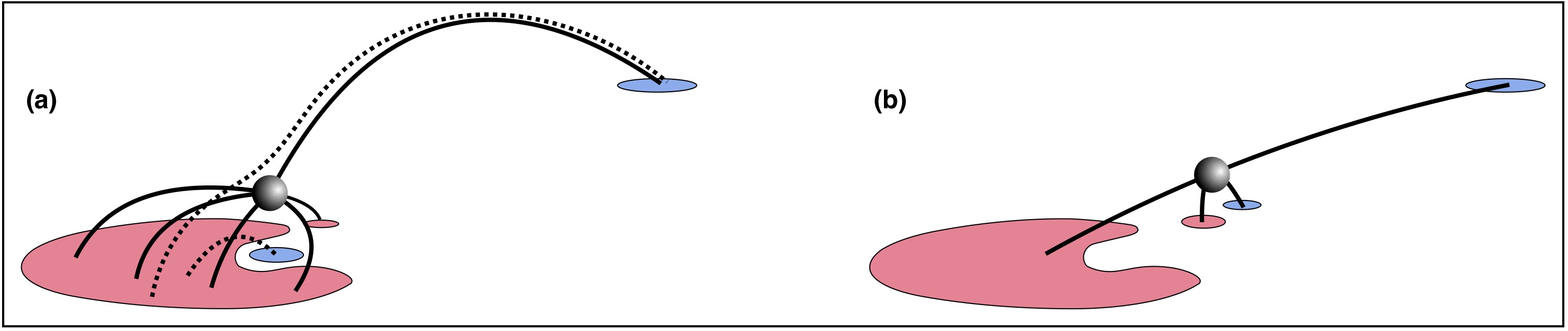

Probably the most elongated cartoon in the Archive, this simple representation hides a subtle message. On the left one sees an embedded polarity, above which the magnetic field contains a null, and thus a spine-and-fan geometry, with the observational appearance of a simple loop connecting along the spine to the remote blue polarity.. The dotted field lines can reconnect, producing a "three-legged flare". Alternatively, the right panel shows a more prosaic reconnection induced by emerging flux at a more remote point. The paper is using these examples to explain "impulsive heating events", known more commonly as "flares."
