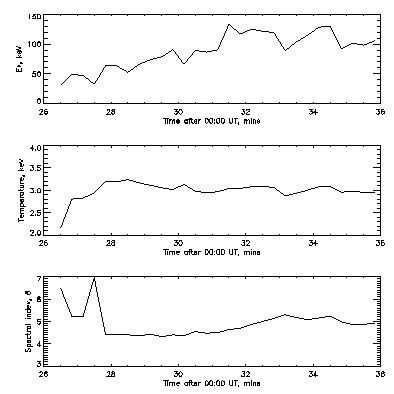

New: July 23 2002 flare: Nonuniform ionisation target fit

July 23 2002 flare: Imaging spectroscopy

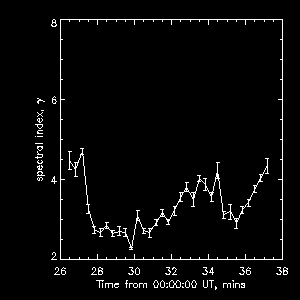

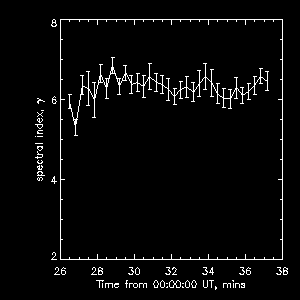

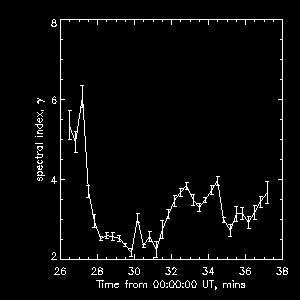

Temporal variation of spectral index:
NEW: Spectral index was calculated in 20-60 keV range.

NEW: Comparison with spatially integrated spectra.

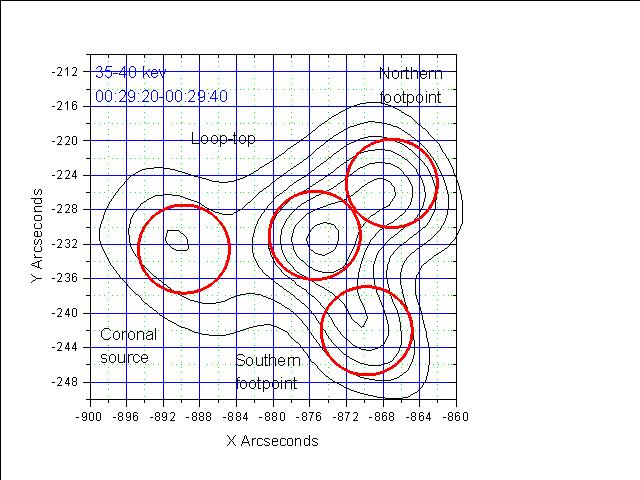

Corona source	Loop top source
Southern footpoint	Northern footpoint

Spatial variation of spectral index:

NEW: Spectral index contour maps (white lines) over
3 CLEAN images in differen energy ranges:
10-15 keV - red lines
35-40 keV - green lines
60-65 keV - blue lines

Variation of the spectral index dlog(J(e))/dlog(e) vs position:

Four figures are given for every time interval

Top-right: Combination of two CLEAN images with normalized intensity in 70-75kev band
and 35-40kev band; Square dots show the maximum in intensity -> the assumed magnetic loop.
Bottom-right: The same as previous overlaid with spectral index map. Spectral index was calculated in 20-60 kev range.
Top-left: Altitude of above the Sun assuming loop is perpendicular to solar surface.
Bottom-left: Variation of spectral index along the reconstructed loop.(when loop structure is not obvious it is just a variation along the line shown in Top-right figure)
