Wang, Tongjiang, Yihua Yan, Jialong Wang, H. Kurokawa, and K. Shibata, The Large-Scale Coronal Field Structure and Source Region Features for a Halo Coronal Mass Ejection, ApJ, 572, 580-597 (2002) (ADS)
(click on the image for a larger version)
Date: 2002 October 29
Update: 2019 December 04

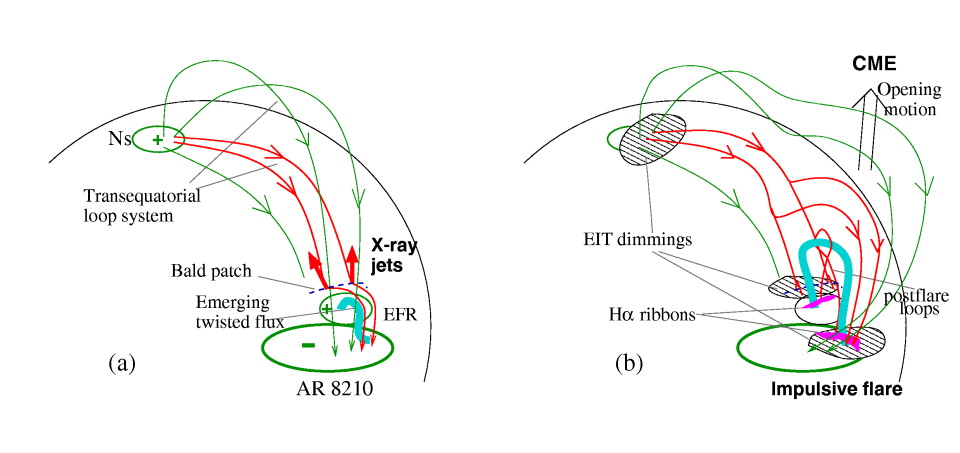

An event-specific cartoon describing the remarkable behavior of the disappearing trans-equatorial loop systems of AR 8210, in May 1998 (SOL1998-05-02T13). The transequatorial fields do not figure substantially in this Archive, but here is a good description. Note that the mechanism here requires multipolar fields, for example via a bald patch. CSHKP thrives on a simple bipole structure.
This is an important cartoon because the transequatorial connection indicates a complex global event. Is the large-scale corona important energetically, or is it merely a gaudy display reacting to drivers in the lower corona?
