X-Radiation (E> 10 keV), H𝛼 and Microwave Emission During the Impulsive Phase of Solar Flares
Vorpahl, Joan A., X-Radiation (E> 10 keV), H𝛼 and Microwave Emission During the Impulsive Phase of Solar Flares, Sol. Phys., 26, 397-413 (1972) (ADS)
(click on the image for a larger version)
Ah, 1972!

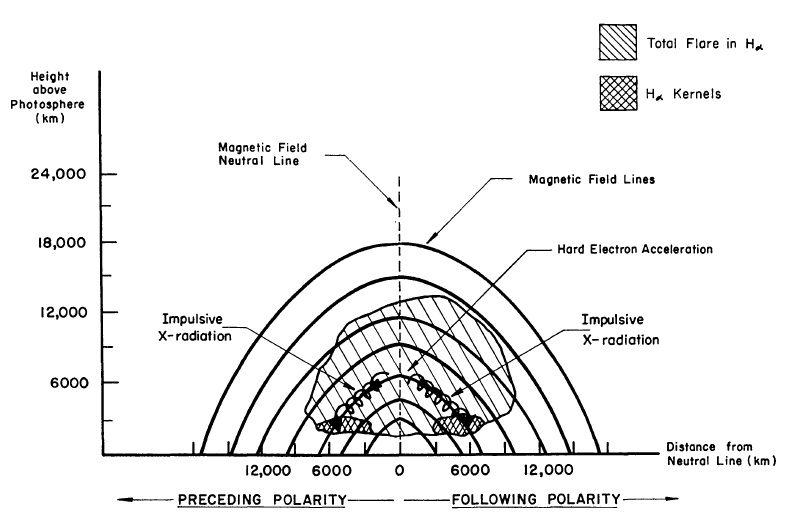

Relatively early in our Archive, Joan Vorpahl produced
this nice depiction of the joint variation of hard X-rays, microwaves,
and Hrα emissions.
The standard
impulsive-phase cartoon continued
like this, while the CSHKP versions would generally
just add a cusp structure at the loop top.
Note this cartoon's laconic omission of magnetic reconnection and its focus on
flare phenomena, as opposed to CMEs.
The suggestions that the Hα flare emission ("the chromosphere")
rises above 12 Mm, and does so preferentially on the following side of the
active region, may not have been fully borne out in later work.
Regarding the heights, we know much more now about the third
dimension in the solar atmosphere, but it would be interesting to
gain some direct information about the physical heights of the
across the line profile of the Hα (or Lyα) emission.
The footpoints of the "hard electrons" are now known to occur very
deep in the atmosphere, because of their congruence with the
white-light flare emission.
