Sturrock, PeterĀ A., Mark Weber, MichaelĀ S. Wheatland, and Richard Wolfson, Metastable Magnetic Configurations and Their Significance for Solar Eruptive Events, ApJ, 548, 492-496 (2001) (ADS)
(click on the image for a larger version)
Date: 2006 August 06
Update: 2019 November 29

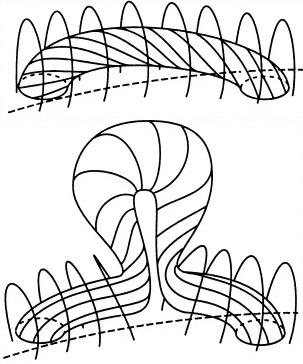

The argument of the paper is that an instability may happen in which the pre-flare state, with two flux systems, can have a higher energy than the post-flare state in which one of them has partially erupted. Note that this does not imply a violation of the Aly-Sturrock theorem. The calculation makes use of a Gold-Hoyle flux rope. The Archivist is suspicious of this graphic because it shows, in a cartoonish sort of way, that the current penetrating the photosphere has suddenly dropped to zero during the instability. This should really be a no-no, shouldn't it? The twist cannot disappear rapidly into the solar interior because of the low Alfven speed there. Moreover, the twist looks like the same at each footpoint, a coincidence that seems doubly improbable.
