Spectroscopic and imaging observations of small-scale reconnection events
Li, Dong, Leping Li, and Zongjun Ning, Spectroscopic and imaging observations of small-scale reconnection events, MNRAS, 479, 2382-2388 (2018) (ADS)
(click on the image for a larger version)

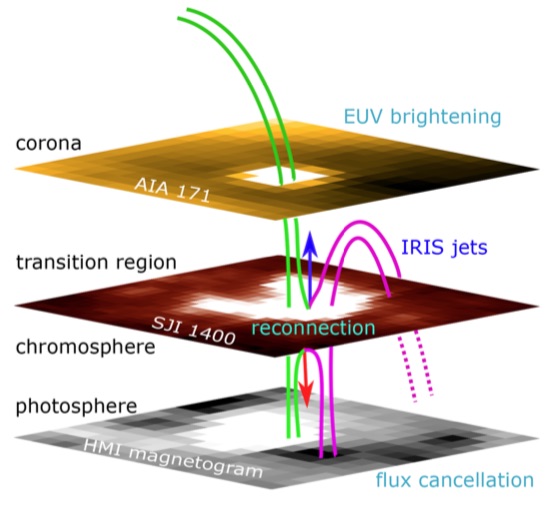

Action at the footpoint of an EUV brightening, construed as a coronal
magnetic loop, explained as the consequence of magnetic reconnection
in the lower atmosphere.
The geometry is that of the Xu
illustration of connectivity.
The basic idea of footpoint energy release is well represented in other
Archive cartoons, some even pushing the dream of reconnection to regions
below the photosphere itself.
The clear prediction is as shown here in this diagram, namely that a
bipolar photospheric field structure must be available at the photospheric
level, with the implication that if this is not always seen, it must be
because of limited angular resolution in the magnetograms.
The blue and red arrows represent the telltale bidirectional jet action,
as detected here by the IRIS spacecraft.
This cartoon, like so many, really misses the point about the
three-dimensionality of the transition "layer" - better, maybe, "cavern",
thinking about stalactites and stalagmites.
