Cane, H. V. and D. Lario, An Introduction to CMEs and Energetic Particles, Space Sci. Rev., 123, 45-56 (2006) (ADS)
(click on the image for a larger version)

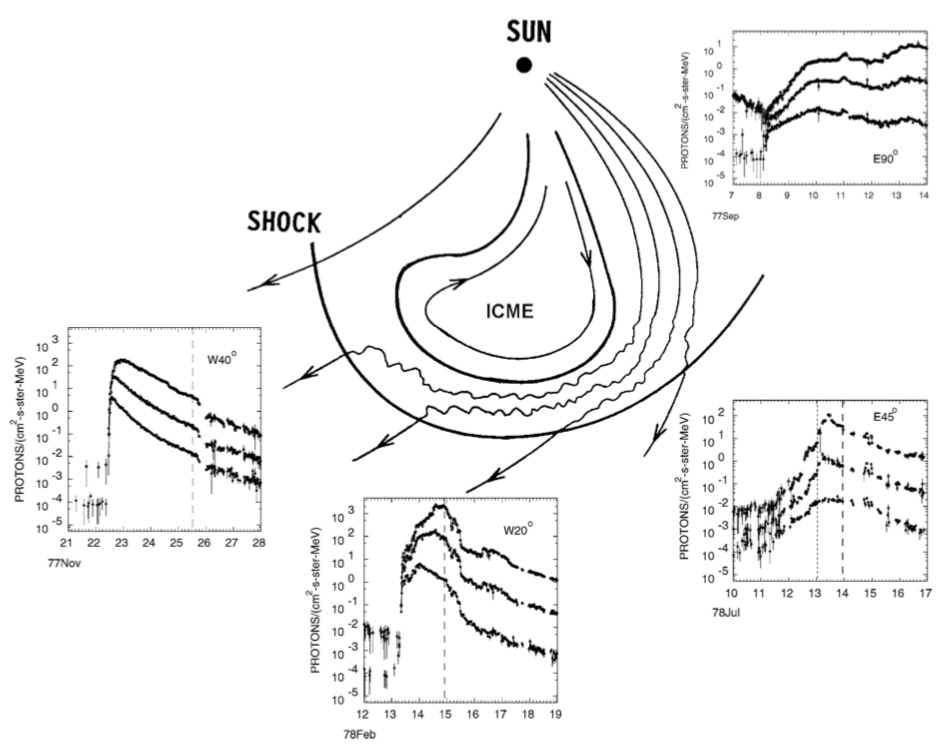

This is an updated version of the classic
Cane
cartoon.
Here, as with the earlier version, one has to invoke some imagination as
regards the 3D structure of the all-important shock wave.
This version used a French curve template rather than a simple arc, but
the Archivist has the feeling that there is horrible and yet vital complexity
in the unseen geometry.
This is an updated version of the classic Cane cartoon. Here, as with the earlier version, one has to invoke some imagination as regards the 3D structure of the all-important shock wave. This version used a French curve template rather than a simple arc, but the Archivist has the feeling that there is horrible and yet vital complexity in the unseen geometry.
