Schrijver, Carolus J., Guillaume Aulanier, Alan M. Title, Etienne Pariat, and Cecile Delannée, The 2011 February 15 X2 Flare, Ribbons, Coronal Front, and Mass Ejection: Interpreting the Three-dimensional Views from the Solar Dynamics Observatory and STEREO Guided by Magnetohydrodynamic Flux-rope Modeling, ApJ, 738, 167 (2011) (ADS)
(click on the image for a larger version)
Date: 2022 January 12

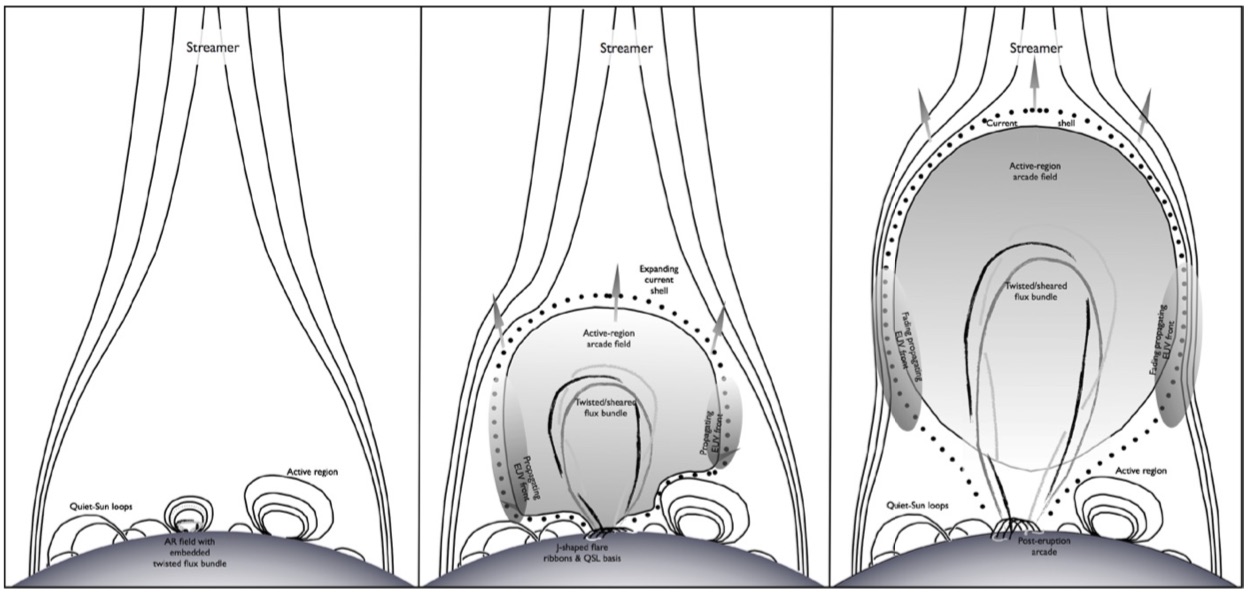

The first X-class flare of Cycle 24, SOL2011-02-15, attracted a great deal of attention. This cartoon is in a familiar style favored by those who relish coronal fields more complex than simple bipoles. This kind of thinking goes way back in history, at least to Bratenahl & Bauml in 1976, if not to the grandfather of flare cartoons, Giovanelli. The alternative to this kind of geometry is the ever-popular CSHKP picture espoused by Moore & Labonte. There could be room on the Sun for both pictures!
This paper sought to explain the EIT wave without reference to a freely-running blast wave as invoked by Uchida. The quasi-perpendicular expansion into the streamer field evokes the EOVSA observations of SOL2017-09-10 (qv).
